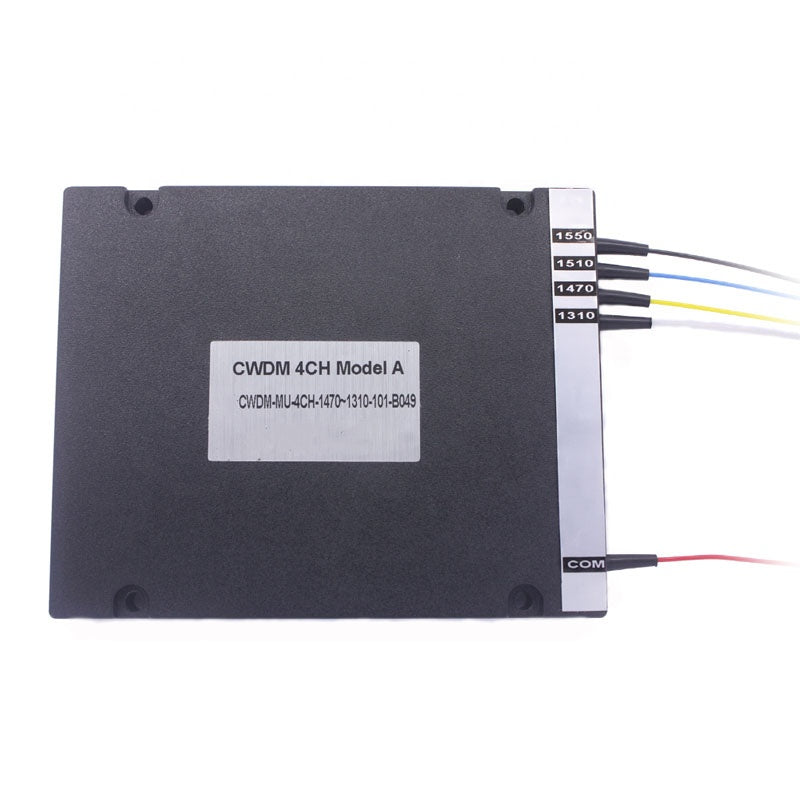

WDM CWDM 1310 1470 1510 1550nm LC/UPC connector ABS box



WDM  CWDM  1310/1470/1510/1550nm LC/UPC connector ABS box

  CWDM Mux/Demux module is based on thin film filtering technology.CWDM technology provides the flexibility to increase the capacity of existing fiber infrastructure by enabling multiple channels (wavelengths) on the same fiber optic cable.Each channel transmits data independently of each other, enabling network designers to transfer different data rates and protocols for different customers or applications.CWDM can solve the shortage of optical fiber and transparent transmission in business transmission and reduce the cost of network construction.It has the advantages of low cost, low power consumption, small volume and so on. It is widely used in subway aggregation and access layer to realize the transmission in a short time.Our CWDM Mux/Demux product provides multiplexing of 4,6,8,10,12,16 and even 18 channels on a single fiber.Standard CWDM Mux/Demux bag types include ABS bag, LGX bag.


Parameter value
Channel Wavelength(nm) 1310/1470/1510/1550
Channel Spacing(nm) 20
Insertion Loss (dB) <1.2
Connector LC/UPC
Channel Ripple(dB) <0.3
Insertion Loss Temperature(℃) <0.005
Polarization Dependent Loss(dB) <0.1
Polarization Mode Dispersion(ps) <0.1
Directivity(dB) ≥50
Return Loss(dB) ≥45
Maximum Power Handling(mW) 500
Opterating Temperature(℃) -40~+85
Storage Temperature (℃) -40~+85
