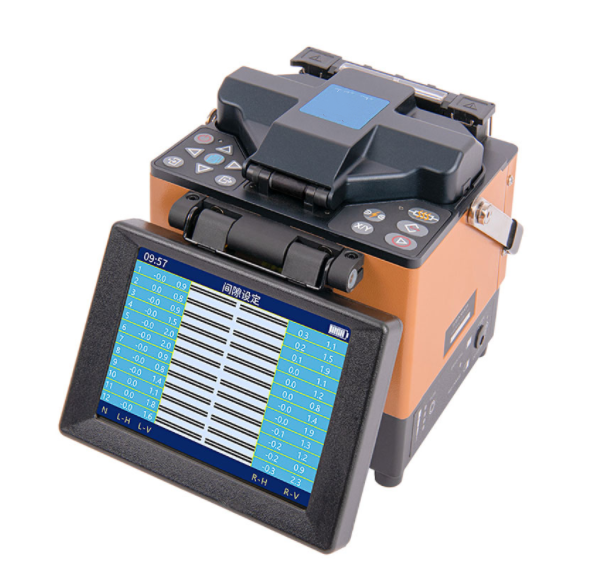

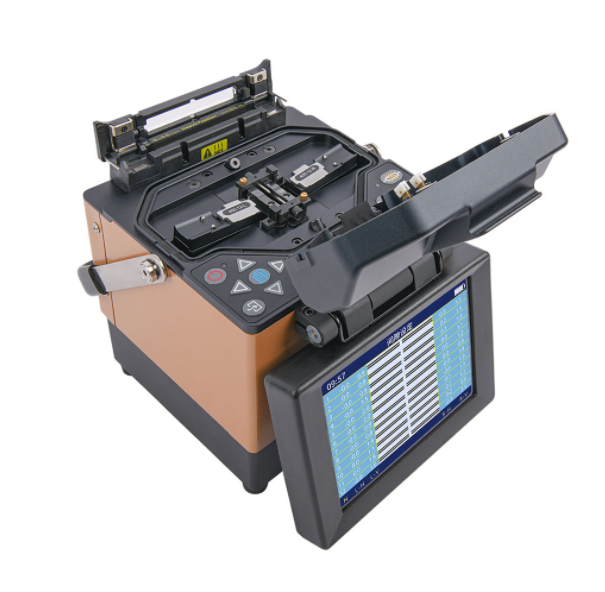

Description
- Fixed V-groove (Clad to Clad)
- Single X or Y view and X & Y view simultaneously;
- Auto check quality of cleaved end face;
- Display fiber offset angle
- Display fiber cleaved angle
- 5.7 inch color LCD monitor with clear digital image display;
- USB interface
- Software upgrade via USB interface
Item |
Descriptions |
Applicable fibers |
SM MM DS NZDS |
Fiber diameter |
Cladding diameter:125μm; Coating diameter:100-1000μm |
Fiber count |
Single fiber,2~12 fibers |
Fiber cleaved length |
11mm (Coating diameter:250μm) |
Actual average splice loss |
0.05dB(SM), 0.02dB(MM), 0.08dB(DS), 0.08dB(NZDS) |
Typical splicing time |
Typical 20sec (standard SM fiber) |
Return loss |
>60dB |
Splicing mode |
Auto Calibrate Normal Special |
Fiber aligning method |
Meticulous,Core,Clad,Manual |
Splicing program |
53 (template), 40(user) |
Tube heating program |
9 (template),24(user) |
Tube typical heating time |
Typical 40 sec |
Protection sleeve length |
60mm, 40mm |
Storage of splice result |
4000 results, 20 parameter per result |
Fiber image magnification |
20X , MAX:55X |
Battery capacity |
Typical 400 cycles (splice/tube heat with inner Li-battery) |
Monitor |
5.7 inch TFT color LCD monitor |
Tension test |
2N |
Electrode life |
2500 |
Terminal |
USB |
Power supply |
AC 100-240V with AC adapter Inner Li-battery (7800mAH) |
Operating condition |
0-5000m above sea level, -10-50°C Max wind velocity of 15m/s |
Dimension |
168mm(L)×150mm(W)×165mm(H) |
Weight |
2Kg excluding battery,3.3Kg including battery |
