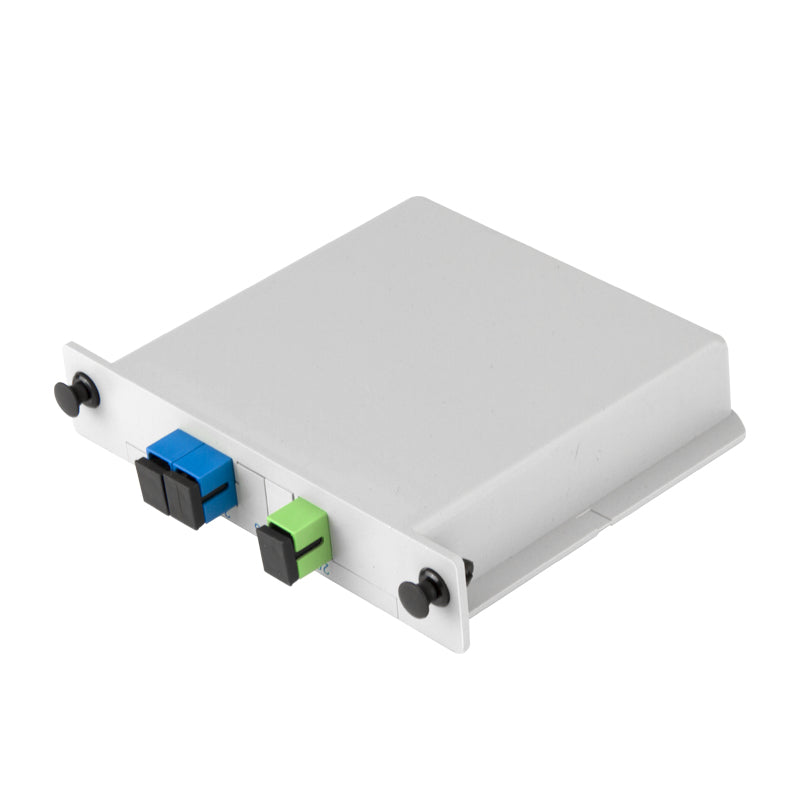

Cassette Type SC UPC FTTH 1x2 Fiber Optic PLC Splitter



Price:
$4.20

Description

Description
PLC Splitter (Planar lightwave circuit splitter) is a type of optical power management device that is fabricated using silica
optical waveguide technology. They are designed for FTTx Passive Optical Networks, CWDM, DWDM and optical cable TV System. PLC Splitter is responsible to distribute optical signals from Central Office (CO) to multiple premise locations.We provides whole series of 1*N and 2*N splitter products that are tailored for specific applications.

Features
Low Insertion loss and Low PDL
Uniform power splitting
High reliability
Excellent environmental stability
Compact size and various package

Applications
FTTx Systems
Digital, hybrid and AM-Video systems
LAN,WAN and Metro Networks
CATV systems
Other applictaions in fiber optic systems

Types
1x2
1x4
1x8
1x16
1x32
Test wavelength
1310nm
Working wavelength
1260nm~1650nm
Interface model
SC/UPC
Insertion loss (dB) (P/S level)
3.8/4.0
7.1/7.3
10.2/10.5
13.5/13.7
16.5/16.9
Loss uniformity (dB)
0.4
0.6
0.8
1.2
1.5
Return loss (dB) (P/S level)
55/50
55/50
55/50
55/50
55/50
Polarization dependent loss (dB)
0.2
0.2
0.2
0.25
0.25
Directionality (dB)
55
55
55
55
55
Wavelength dependent loss (dB)
0.3
0.3
0.3
0.3
0.3
Temperature stability (dB)
0.4
0.4
0.4
0.4
0.4
Features
Good temperature stability
Low insertion loss, high return loss
Good interchangeability, good repeatability
