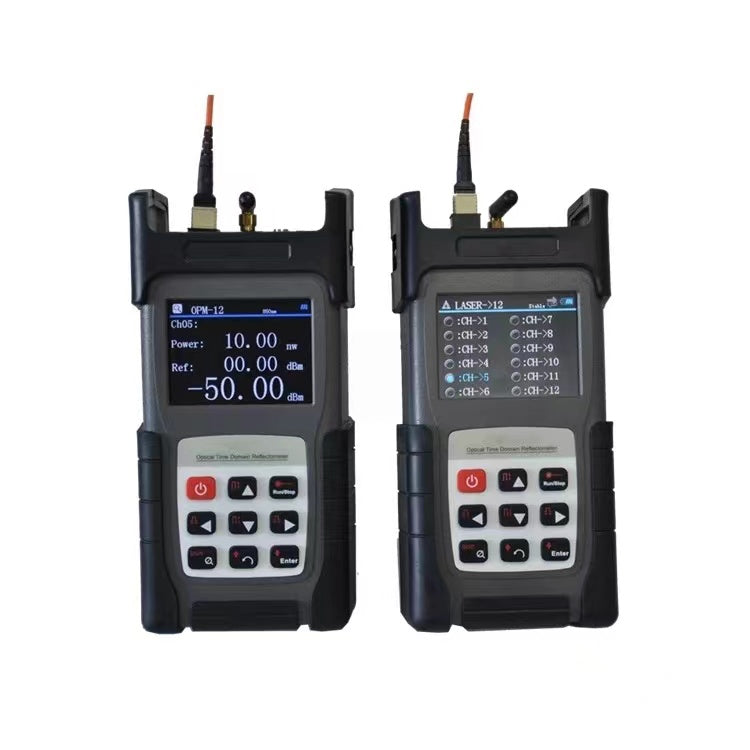

12/24 chanels MPO optical power meter ,MPO optical light source MPO Fiber Tester



Price:
$3,800

Description

 Features:
  • 12, 24, customize channel number
  • High resolution and colorful display
  • 100 data records
  • If five minutes no-operation, the screen will automatically adjust backlight and enters energy-saving mode
  • One key switching of four function interfaces (single-channel power, 12-channel power meter MPO line sequence test, histogram interface)
  • USB interface can be used to directly copy data to the computer .
  • Users can customize the threshold for testing
  • Built-in 3500 mAh large-capacity lithium battery that can be used more than 10 hours
  • User-friendly - Computer interaction interface and easy to operate
Specifications

 MPO Optical Power Meter Specifications:


Detector

InGaAs

Wavelength Range

8501700nm

Calibration Wavelength

850/1300or1310/1550nm

Optical Power Meter Range

+3-50 dBm

Insertion Loss Accuracy

< 0.2s/channel

Resolution

0.01dB

IL accuracy

± 0.1dB

Channel

  12

Linearity

±0.2dB (+5-50dBm)

Connector

USB

Interface Type

SM/MM MPO/PC 12/24 core Female connetor

Dimension

20.5*11.5*5.5cm

Weight

0.3kg


 MPO Optical Light Source Specifications:



Detector

FP LD

Wavelength

850/1300/1310/1550nm ( optional)

Frequency

0 Hz ,270Hz , 1KHz ,2KHz

Fiber type

9/125, 50/125 ,62.5/125

Interface Type

SM/MM  MPO/PC 12/24 Female

Output Power

> -10dBm

Stability

±0.2(15min.) ,±0.5(8hours)

Channel

   12

Dimension

20.5*11.5*5.5cm

Weight

0.3kg
